Ashley, a new client from Commerce, Georgia, needed a site plan for construction permit purposes to tear down and rebuild her garage and sunroom.
This residential project required a well-detailed site plan that would clearly communicate all structural changes and satisfy the local permitting office.
Order:
Ashley chose our Medium Package Site Plan, requesting delivery within 12 hours.
Although she didn’t provide any helpful files, she gave us a clear project description.
She also requested the plan in PDF format, formatted to 11×17 inches.
OUR SOLUTION:
Our design team got to work right away.
Using Ashley’s brief and the details she provided, we created a custom site plan tailored specifically to her construction project.
The plan reflected both existing features and the proposed changes, giving the building department exactly what they needed to approve her permit.
Delivered in under 12 hours, the site plan was shared in PDF format as requested, with all required elements and dimensions clearly marked.

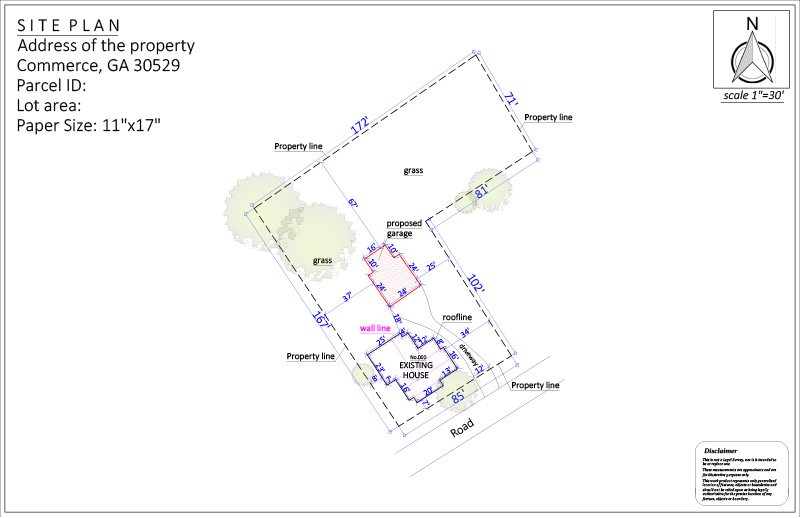

Ashley’s Medium Package Site Plan drawing incuded all necessary information like:
REVISIONS
Ashley was completely satisfied with the first version of the site plan.
No revisions were needed.
SUMMARY
This case study showcases how our team helped Ashley move forward quickly and confidently with her garage and sunroom rebuild.
With zero revisions and a fast turnaround, we demonstrated the power of clear communication, efficiency, and expert design—all without ever needing to visit the site.
Ashley’s success is a reminder of how smoothly things go when professionals handle the planning.
