Jim, a repeat contractor client from St. Louis, Missouri, needed a detailed site plan for a 24kW Generac generator installation.
The plan was required for a generator permit and had to clearly show the generator location and all required setback distances in relation to the house and property lines.
Order:
Jim ordered our Medium Package Site Plan, requesting the final plan in PDF format and a custom paper size of 8.5″ x 11″.

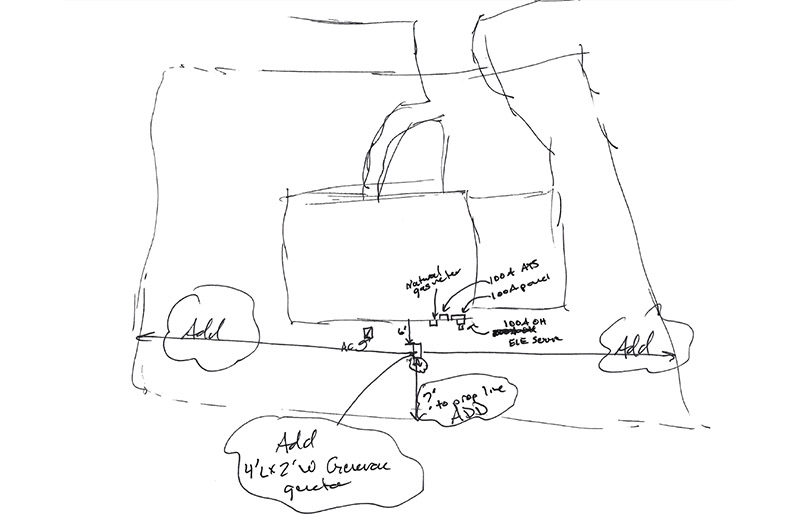

He provided a hand-drawn sketch with clear dimensions and marked details, asking us to add the 4’L x 2’W generator, show the distance from the house to the generator and show the distance from the generator to property lines.
Standard delivery time selected was 24 hours.
OUR SOLUTION:

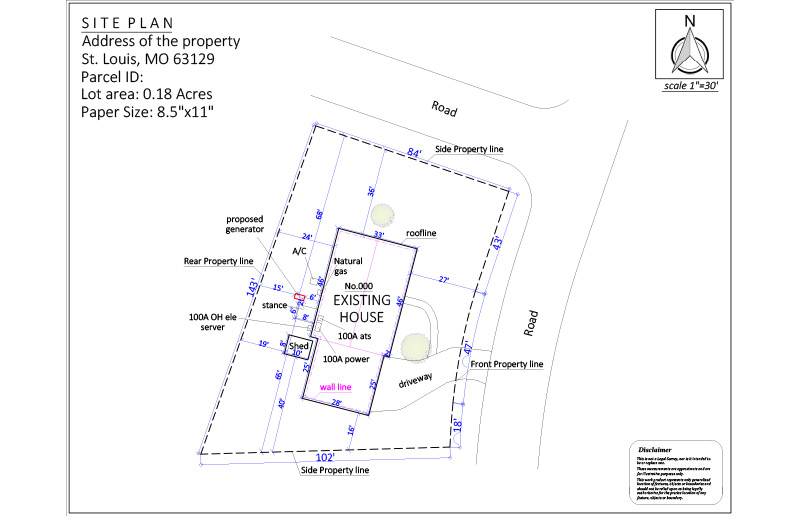

Using Jim’s sketch and measurements, our CAD designers prepared a clear, detailed site plan.
Since no site visit was required, we were able to work efficiently and focus on accuracy and compliance.
Although 24 hours were selected, the site plan was completed in just 16 hours and delivered in the requested format.
Jim’s Medium Site Plan drawing incuded all necessary information like:
REVISIONS
No revisions were needed.
The first version met all requirements and was ready for permit submission.
SUMMARY
This project shows how precise measurements and clear layouts are essential for generator permits.
Jim valued the fast turnaround and accurate setback details, which allowed him to proceed confidently with installation planning.
The combination of clear client input and efficient drafting made this project smooth from start to finish.
