River J., a new client from Carver, Massachusetts, needed a detailed site plan for a Commercial Multi-Structure Development requiring a CUP (Conditional Use Permit).
The project involved multiple proposed structures that had to comply with specific setback requirements, making an accurate site plan essential for the approval process.
River selected our Premium Package Site Plan and requested delivery in PDF format with a standard 24-hour turnaround. He also requested an Impervious Surface Calculation to support the permit application.

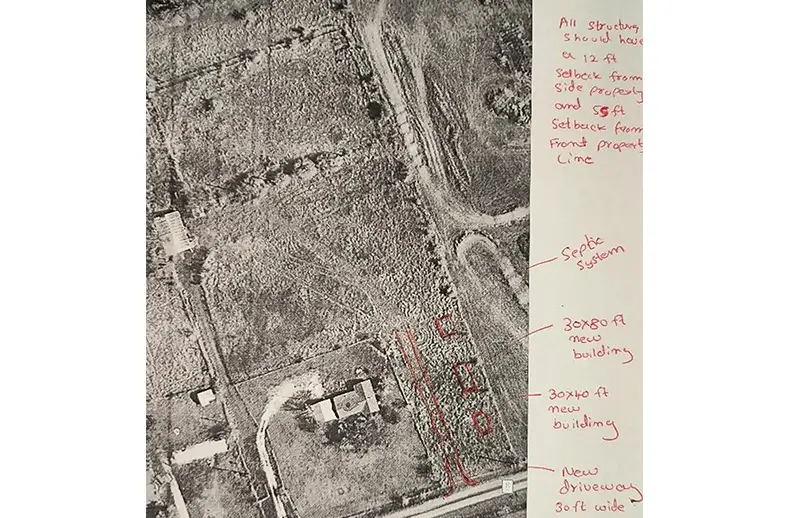

To help us understand the project, River provided an image containing detailed instructions. The proposed development required all structures to maintain a 12-foot setback from side property lines and a 55-foot setback from the front property line.
Address Only – No Site Visit Required
Excellent 4.9/5 based on 947 reviews
River J. “The site plan was exactly what I needed, had all the necessary information, and was very detailed. I was very impressed with how quickly I received it. I would highly recommend getasiteplan.com !“

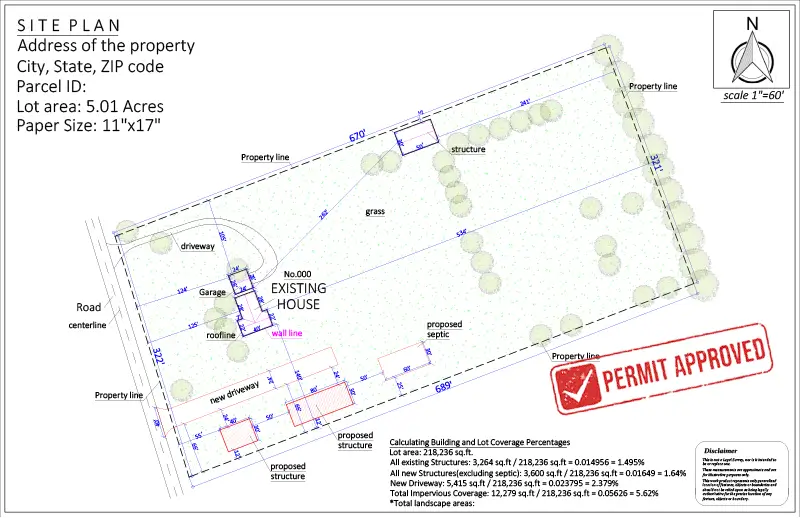

Using River’s instructions, our CAD designers prepared a detailed site plan showing the proposed development layout and required setbacks. We carefully incorporated the impervious surface calculations and ensured all site elements were clearly represented.
Since no site visit was required, River was able to save both time and additional expenses.
Although he selected a 24-hour turnaround, our team completed the project in 18 hours, allowing him to begin his permit submission sooner than expected.
River’s Premium Site Plan drawing included all necessary information like:
REVISIONS
River requested three revisions to refine the placement of several structures.
Our team completed each revision promptly and at no additional cost.
This project demonstrates how a detailed site plan can simplify the approval process for more complex developments.
River appreciated the responsiveness of our team, the accuracy of the setbacks, and the quick turnaround.
The greatest benefit was having a clear visual representation of the entire development, helping ensure the project met local requirements before submission and reducing the risk of costly delays.
