Case Study / Residential Project

How Tracey M. from Greenville, SC
Got Her Site Plan for a Garage Permit

Tracey M., a repeat residential client from Greenville, South Carolina, needed a detailed site plan for a detached garage construction project.

The proposed garage was designed to align with the back of the existing home and be positioned 6 feet from the existing porch on the north side of the property.

To obtain the necessary permit, she needed a clear and accurate site plan showing both existing and proposed improvements.

How Tracey Got Started

Tracey selected our Premium Package Site Plan and chose the rush 6-hour turnaround option. She requested the completed plan in PDF and JPG formats with a custom paper size of 8.5 x 11.

To help our team understand the project, she provided a technical drawing showing measurements, the placement of the existing house, a new mudroom, and the proposed garage location. She also requested topographical lines to be included in the final draft.

Get Your Garage Permit Site Plan Approved

Address Only – No Site Visit Required

Tracey M. “Great work. Very quick turn around. Michael was extremely understanding and helpful in making necessary adjustments so that my plan was exactly what I needed.“

How We Drafted Tracey’s Garage Permit Site Plan

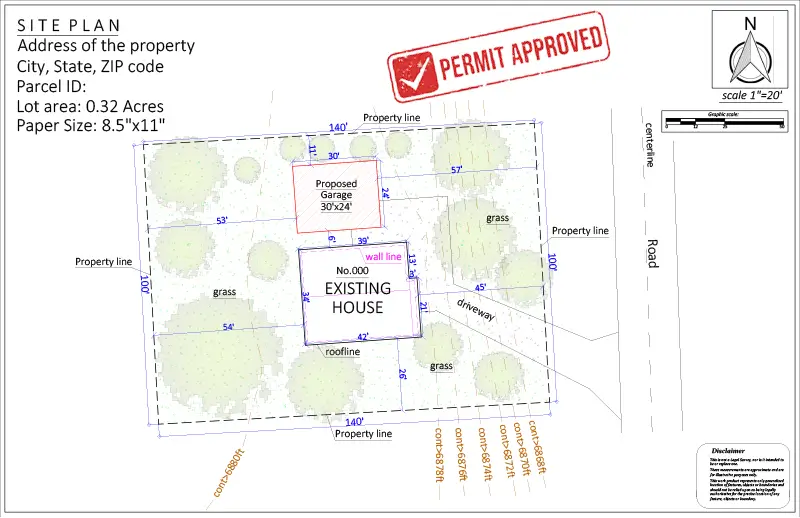

Using the technical drawing and project details, our CAD designers prepared a detailed, non-certified site plan, accepted by most townships, that accurately represented the existing property and the proposed detached garage.

The site plan was completed in just 4 hours, faster than the turnaround time Tracey selected, and delivered in her requested formats.

The final plan clearly illustrated the relationship between the existing structures and the new garage, helping support the permit application process.

Tracey’s Premium Site Plan drawing incuded all necessary information like:

Property Lines
Primary Structure
North Arrow
Parcel ID
Landscape
Lawn

Lot dimensions
Scale, Roofline
Fence, Trees
Sidewalks
Driveway
Paths, Shrubs

Measurements Between Major Features
Swimming Pool
Accessory Structures
Well and septic system
Parking Spaces

REVISIONS

Tracey requested one revision, which involved a minor adjustment to the garage placement.

Our team completed the update promptly at no additional cost.

Result: Garage Permit Site Plan Ready in Greenville, SC

This project demonstrates how detailed technical information combined with professional drafting can streamline a residential permit application.

Tracey appreciated the speed of delivery, the accuracy of the layout, and the clear presentation of the proposed garage location.

The greatest benefit of this project was transforming a detailed concept into a permit-ready site plan that provided confidence and clarity for the next stage of construction.

What Tracey said about our plan

Great work. Very quick turn around. Michael was extremely understanding and helpful in making necessary adjustments so that my plan was exactly what I needed.
