Carol, a commercial client from Benson, Arizona, needed a detailed site plan to apply for a sign permit.
Her project included a canopy sign and a main ID monument entrance sign, both essential elements for her commercial property’s visibility and branding.
She wanted every existing structure clearly documented to ensure her permit submission was complete and accurate.
Order:
Carol selected our Premium Package Site Plan, requesting delivery in PDF and DWG formats.
She asked us to clearly show all existing structures, signs, the canopy, and other visible features on the property.
The requested delivery timeframe was 24 hours, and she did not require a custom size or additional mapping elements such as topographical lines or vicinity maps.
Although she provided no supporting files, her instructions were clear enough for our team to begin.
OUR SOLUTION:
Using the information Carol shared, our CAD designers created a custom, non-certified site plan – a format accepted by most townships and a faster option for clients who want to move quickly.
Because our plans require no site visit, Carol benefited from a smooth and efficient process, saving both time and resources.
Even though she requested a 24-hour turnaround, we completed her plan in just 10 hours, ensuring she received it far earlier than expected.

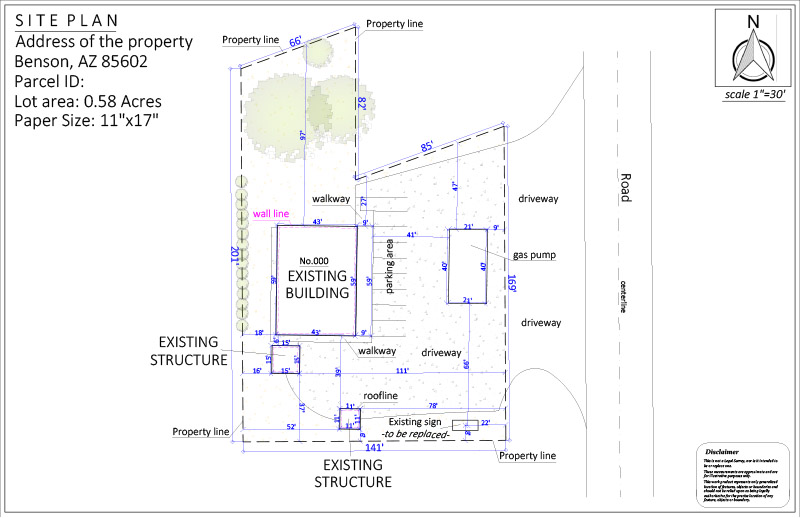

Carol’s Premium Site Plan drawing incuded all necessary information like:
REVISIONS
Carol asked for one revision, which our team handled quickly and at no additional cost.
The changes ensured her plan met every permit requirement and reflected the property exactly as needed.
SUMMARY
This case study shows how our team supports commercial clients who rely on precise, fast drafting for city or township approvals.
Carol appreciated the speed, clarity, and attention to detail, and now has all she needs to complete her sign permit process with confidence.
Our designers helped transform her instructions into a fully compliant site plan – delivered ahead of schedule and ready for submission.
