Case Study / Residential

How Rob H. from New Mexico Got His
Site Plan Approved for a Tree Removal Permit

Rob H., a new residential client from Albuquerque, New Mexico, needed a detailed site plan for a tree removal permit.

His project involved removing a tree located in the front yard, and the permitting department required a clear plan showing the exact tree location in relation to the existing property features.

How Rob Got Started

Rob selected our Medium Package Site Plan and requested delivery in PDF and JPG formats with a custom paper size of 24″ x 36″.

He chose a 12-hour turnaround time for the project.

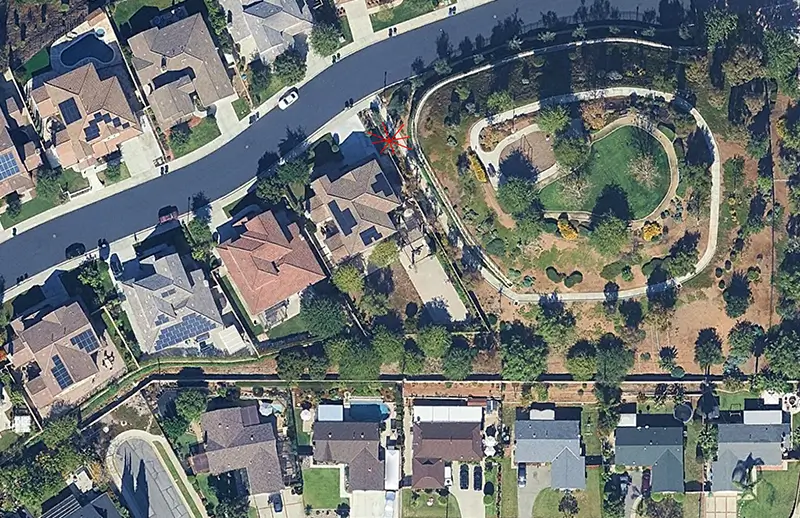

To help our team identify the correct tree, Rob provided a photo that marked the tree positions on the property, with the tree slated for removal highlighted in red. This gave our designers a clear reference point and helped ensure accuracy from the start.

Get Your Tree Removal Site Plan

Address Only – No Site Visit Required

How We Drafted Rob's Tree Removal Permit Site Plan

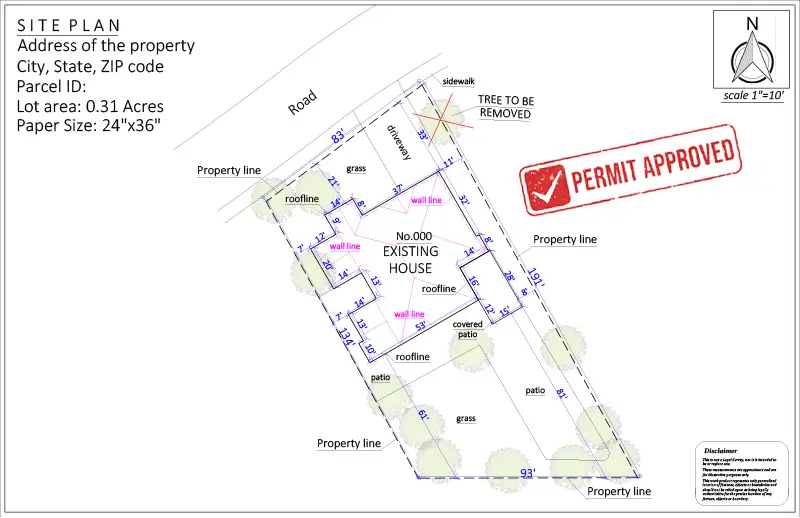

Using Rob’s marked-up photo and available property data, our CAD designers created a detailed non-certified site plan showing the existing conditions and the specific tree designated for removal.

Although Rob selected a 12-hour turnaround, we finished the site plan in just 9 hours, and delivered it in PDF and JPG format, allowing him to begin his permit application process sooner than expected.

Rob’s Medium Site Plan drawing incuded all necessary information like:

Property Lines
Primary Structure
North Arrow
Parcel ID

Lot dimensions
Scale, Roofline
Fence, Trees
Sidewalks

Measurements Between Major Features
Swimming Pool
Accessory Structures
Driveway

REVISIONS

No revisions were requested.

The first draft accurately reflected Rob’s requirements and was accepted as delivered.

Result: Tree Removal Permit Ready in Albuquerque, NM

This project demonstrates how a clear site plan can simplify the tree removal permitting process.

Rob appreciated the quick turnaround and the precise identification of the tree to be removed.

The biggest advantage of this project was the combination of speed and accuracy, which gave him a permit-ready plan without delays and helped make the approval process much smoother.
