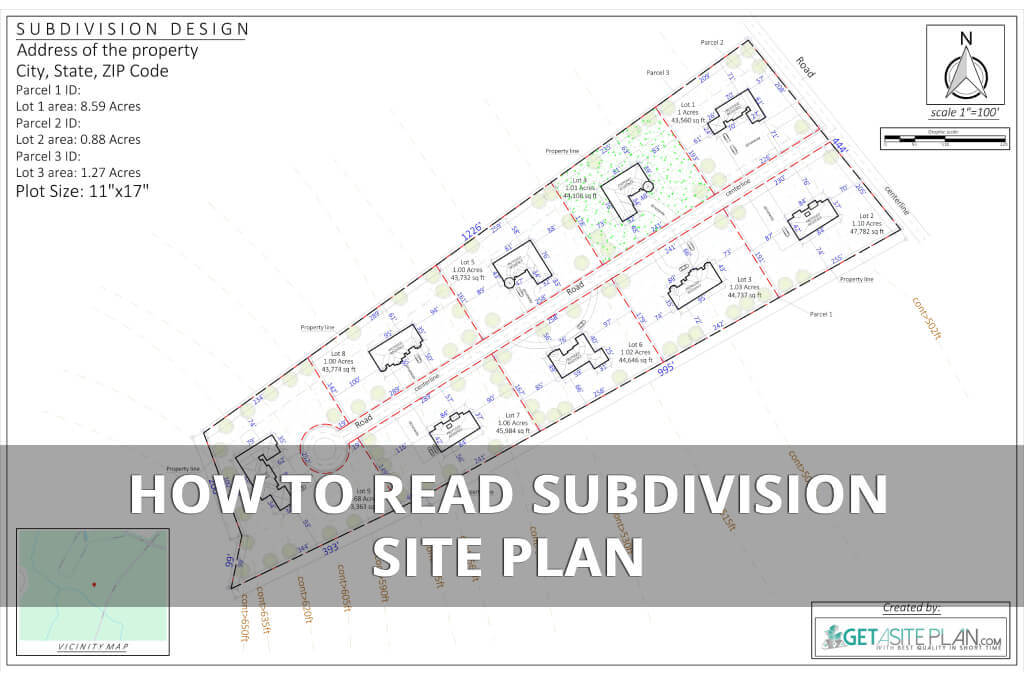

How to Read Subdivision Site Plan – Step by Step Guide

In many cases, you’ll receive your plan as a subdivision site plan PDF or even as a downloadable template. Regardless of the format, knowing how to interpret it will help you make informed decisions about construction, landscaping, and compliance with local regulations.

At first, subdivision site plans may look like a confusing mix of lines, numbers, and symbols – but once you know what to focus on, it becomes a valuable tool for understanding your property.

In this guide, we’ll walk you through each section of a typical plan, explain how to interpret technical symbols, and show you how to avoid costly mistakes.

Key Takeaways:

1. A subdivision site plan shows lot boundaries, setbacks, easements, and zoning rules in a scaled, legally accurate layout.
2. Understanding your plan helps prevent costly mistakes and ensures compliance with local building and zoning regulations.
3. Whether in PDF or template form, reading your plan correctly is essential for successful property planning and development.

Step-by-Step Guide to Reading a Subdivision Site Plan

Before we dive into the steps, remember this: a site plan is a map. It tells a visual story about how a subdivision is laid out – where roads provide access, where infrastructure runs, and how each lot is designated.

Since it’s a map, it usually has universal technical symbols that occur in almost every subdivision site plan:

1. Title block
2. North arrow and scale
3. Boundary line
4. Setback and easements
5. Existing structures and features
6. Proposed changes
7. Notes and legends

Here’s where to begin and how to interpret each element of the subdivision site plan.

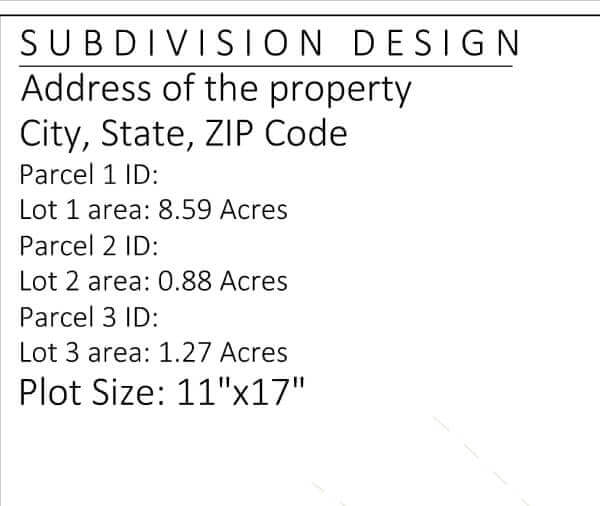

1. Locate the Title Block

Title block element is usually found at the bottom or corner of the plan. It typically includes plan name, subdivision name, parcel number (APN), date, and scale.

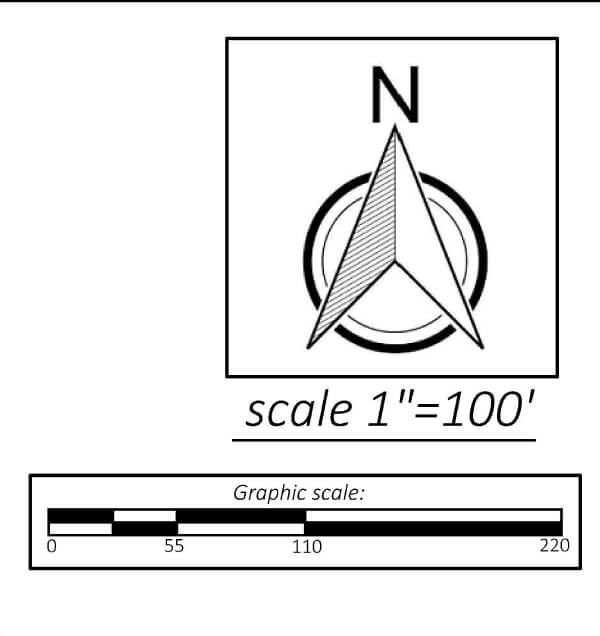

2. Identify the North Arrow and Scale

Represented as a compass arrow icon, the north arrow is usually placed in the top right corner of a subdivision site plan. North arrow shows orientation (important for setbacks and landscaping).

This element helps you understand sun exposure, landscaping considerations, and placement of structures.

Besides the north arrow, there’s usually a scale at the same place which tells you how distances on the plan translate to real-world measurements. For example, 1’’=100’ means every inch on the plan equals 100 feet on the ground.

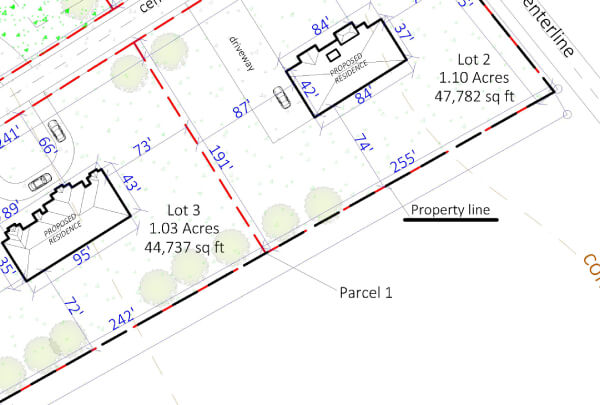

3. Understand the Boundary Lines

The outermost thick solid line represents the boundary of the entire subdivision. Inside, you’ll see thinner lines dividing individual lots.

Key distinctions:

• Property Lines (Thick, solid black lines): Define the outer edge of a parcel or lot.
• Lot Lines (Red lines): Separate individual lots within the subdivision.
• Road Right-of-Way (Dashed red lines): Show where public roads or shared access roads run.

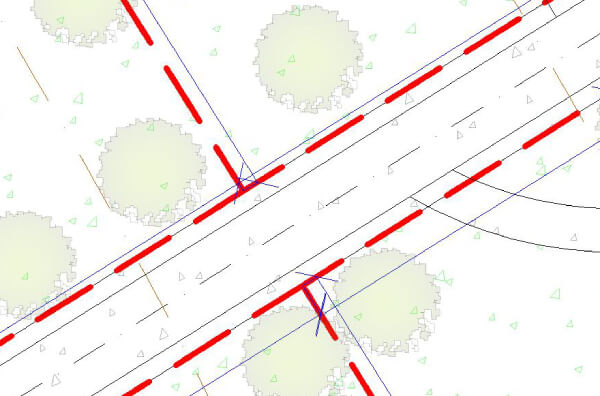

4. Look for Setbacks and Easements

Setbacks and easements are two of the most critical elements on any site plan because they dictate how you can use your land.

• Setbacks:
  • Invisible buffer zones where permanent structures cannot be built.
  • Shown as dashed lines near the perimeter of each lot.
  • Protects things like sidewalks, roads, and neighboring properties.

• Easements
  • Portions of land reserved for utilities, drainage, or shared access.
  • May be labeled with text such as “Utility Easement” or simply “Easement.”

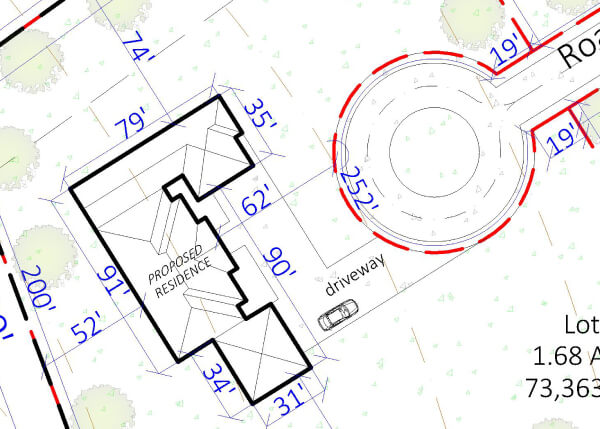

5. Spot Existing Structures and Features

Your plan will also show what’s currently built or present on the land.

Common features on subdivision site plan:

• House footprints (rectangular outlines with interior wall marks).
• Driveways and sidewalks leading to the road.
• Natural features like trees, pools, or large rocks.
• Utility elements such as manholes, hydrants, or underground lines (often marked with small icons or abbreviations).

This step is essential when planning additions or landscaping changes.

6. Review Proposed Changes (If Applicable)

Some site plans also include future updates or proposed developments.

These are often shown in:

• Different colors (e.g., blue or green lines).
• Alternate line styles, like dotted instead of solid.

For example, a proposed garage or patio might be indicated with a lighter dotted outline next to the existing home. However, keep in mind that proposed changes may require HOA or city approval before construction begins.

If you’re planning updates or modifications to your property, you can have a revised subdivision site plan design created online to visualize your proposed changes with GetASitePlan.

Our service can quickly prepare updated drawings that include both existing and proposed structures, making it easier to review before submitting to your local planning department.

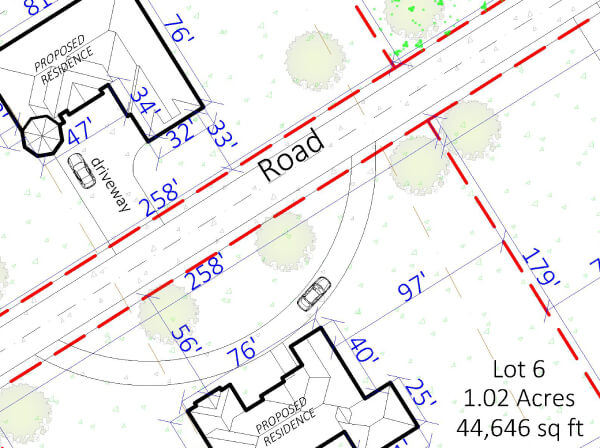

7. Check Notes and Legends

The legend is your decoding tool. It explains what each symbol, line type, or abbreviation means.

Key information found in the legend:

• Lot numbers and parcel IDs.
• Symbols for trees, water lines, or manholes.
• Labels for roads, easements, and drainage areas.
• Notes about drainage patterns, construction limits, or topography.
• This section ensures you can accurately interpret technical information without guesswork.

This section ensures you can accurately interpret technical information without guesswork.

(If you don’t already have one, our guide on How to Obtain a Subdivision Site Plan explains the process step-by-step, from requesting documents to reviewing final designs.)

Here’s a table summarizing how the symbols and elements are represented in the subdivision site plan.

Symbol/Label	What It Means
Solid line	Property boundary
Dashed line	Easement or setback
Triangle marker	Utility location
Circle with X	Tree to be removed/relocated
N or arrow symbol	North direction

Table 1: Meaning of subdivision site plan symbols/labels

How to Read a Subdivision Site Plan Template or PDF?

Most subdivision site plans today are shared digitally, either as templates or PDFs. Understanding how to read a subdivision site plan template or how to read a subdivision site plan PDF will help you correctly interpret your property’s layout, zoning information, and legal boundaries.

Both formats contain the same essential data, including boundary lines, setback distances, zoning classifications, lot dimensions, drainage patterns, and legend keys. However, the way you interact with each format is slightly different.

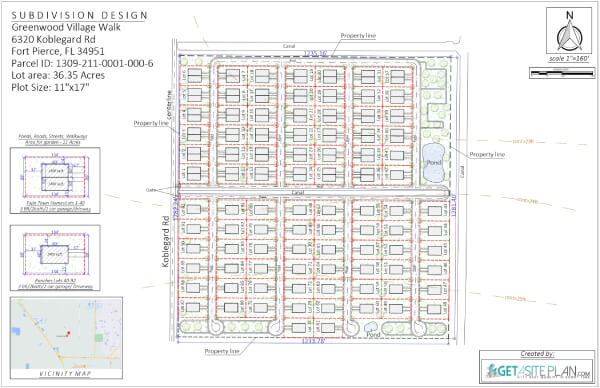

Subdivision Site Plan Template Reading

Subdivision site plan templates are usually editable files designed for early planning or proposed changes. Developers, surveyors, or homeowners may use them to map out new ideas before finalizing the official version.

Key benefits of templates:

• Editable fields: Input or update lot numbers, acreage, and zoning classifications as plans evolve.
• Layered designs: Separate layers for existing infrastructure and proposed updates make it easy to distinguish changes visually.
• Design flexibility: Useful for brainstorming different layouts for access roads, utilities, or drainage areas before committing to a final design.

When reading a subdivision site plan template:

1. Start with the basics – Locate lot boundaries, easements, and roads.
2. Review topographical data – Contour lines help assess slopes and drainage needs.
3. Identify buildable areas – Setbacks will define where structures can legally be placed.
4. Check zoning labels – These indicate whether a parcel is residential, commercial, or mixed-use.

Templates are ideal for planning and early-stage development, but they must eventually be reviewed by a licensed surveyor for accuracy and legal approval.

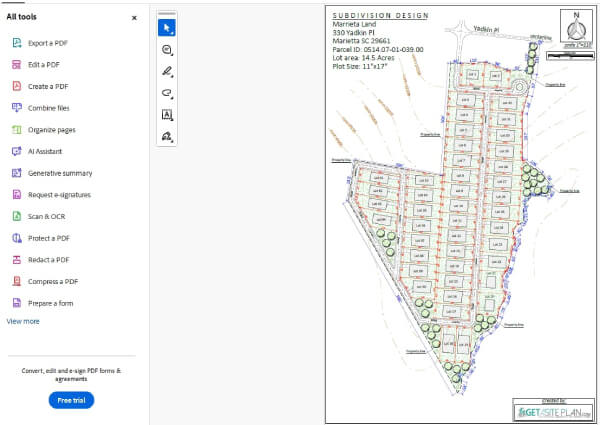

Subdivision Site Plan PDF Reading

PDFs are the most common format for finalized subdivision site plans because they preserve precise scale ratios and cannot be altered. This makes them reliable for official submissions to municipalities or HOAs.

Why PDFs subdivision site plans are preferred:

• Accuracy: Scale and measurements remain exact, ensuring that boundary lines, setback distances, and lot dimensions are legally correct.
• Universal Compatibility: Openable on almost any device without specialized software.
• Permit Ready: Municipalities typically require site plan PDFs for building permit applications.

When reading a PDF subdivision site plan:

1. Zoom in on details like drainage patterns, utility lines, and access roads.
2. Use built-in measuring tools to verify distances between structures and boundaries.
3. Review the legend carefully to decode symbols for utilities, infrastructure, and topography.
4. Cross-check with local zoning maps to ensure compliance.

Whether you are reading a template or a PDF, the process of interpretation remains similar:

1. Identify, measure, and review each element carefully.
2. Understand how zoning regulations and easements affect what you can build.
3. Confirm that every detail is accurate before moving forward with your project.

(PDFs are excellent for showing exact lot dimensions and property boundaries as well – see How to Read a Plot Plan showing these elements)

Whether you’re working with a PDF or an editable template, there are practical strategies that can make understanding a subdivision site plan much simpler and less overwhelming.

Tips for Making Subdivision Site Plan Reading Easier

Reading a subdivision plan can feel overwhelming, but with a systematic approach, it becomes manageable.

Here are practical tips to make the process smoother:

1. Use the Right Tools:
   1. A digital PDF viewer with zoom features will help you closely examine details like setback distances or drainage markings.
   2. Consider a simple scale ruler if you’re working with a printed version.

2. Start with the Big Picture:
   1. Begin by locating boundary lines, roads, and lot numbers before diving into smaller details like utility easements or topography.

3. Check the Legend First:
   1. The legend identifies map symbols and line types. Understanding these upfront saves time and confusion.

4. Look for Zoning Classifications:
   1. Zoning affects land use and future development plans. Knowing whether a lot is residential, commercial, or mixed-use will guide your decisions.

Take notes as you go:

• Mark areas that need clarification, such as unclear boundaries or missing drainage information.
• Additionally, keep a copy of your property deed or tax map nearby for cross-reference and if confused ask your city planning office or contractor for clarification.

By following these tips, you’ll better understand the scaled, visual, and legal aspects of your subdivision site plan, and avoid some potential mistakes when reading it.

Common Mistakes When Reading Subdivision Site Plans

Even with the right information, homeowners often make errors when trying to interpret or analyze a subdivision site plan.

Avoid these common mistakes when reading a subdivision site plan:

1. Ignoring setbacks and easements: Building a shed or fence inside a setback area or easement can lead to violations and costly removals.

2. Misreading the scale: Assuming distances without using the provided scale ratio leads to inaccurate measurements and improper placement of structures.

3. Overlooking drainage patterns: Failing to notice drainage plans can result in water pooling, erosion, or damage to landscaping.

4. Confusing lot lines with road right-of-way lines: This mistake may lead to disputes with neighbors or the city about property limits.

5. Not reviewing the legend: Without checking the legend keys, you risk misinterpreting symbols for utilities, infrastructure, or topography.

Lastly, remember that the surveyor draws the site plan to be technically accurate, but it’s up to the property owner to understand and follow it correctly.

Why Understanding Your Subdivision Site Plan Matters

A subdivision site plan isn’t just a formality –  it’s a vital document for protecting your investment and ensuring compliance with local laws.

• Legal compliance: Whether you’re planning a new build or a complete land subdivision, a properly interpreted site plan provides the clarity you need to comply with zoning rules and local laws. Misinterpretation can result in fines or denial of permits.
• Property value: Clearly defined lot boundaries and easements help maintain property value and prevent disputes.
• Efficient development: Developers rely on accurate site plans to design infrastructure, access roads, and drainage systems that meet municipal requirements.
• Safety: Understanding utility easements and topographical data helps avoid dangerous situations, like hitting buried power lines or building on unstable soil.

In short, a site plan is the blueprint for responsible, safe, and efficient property development.

FAQ – How to Read Subdivision Site Plan

Can I Read a Site Plan Without Special Training?

Yes. While surveyors and engineers receive technical training, homeowners can learn to read a site plan by following step-by-step instructions and referencing the legend for guidance.

Do I Need Software to Read a PDF Site Plan?

No special software is required. Most PDF viewers allow you to zoom, pan, and print the document. However, specialized design software may be helpful if you need to make edits to a template.

What If my Plan has Unclear or Missing Information?

If something appears incomplete or hard to interpret you can contact the surveyor or developer who created the plan, verify measurements with your local zoning office, or avoid starting any construction until discrepancies are resolved.
