Cierra, a new residential client from Cary, North Carolina, needed a detailed site plan to apply for a septic and well permit.
Her request was clear, she needed to show the existing condition of the property, including the septic system and well placement, in a clean and accurate format for submission.
Cierra chose our Premium Package Site Plan, which includes both core layout elements and extended landscape features.
She selected a 24-hour delivery timeframe and requested the final plan in PDF format.

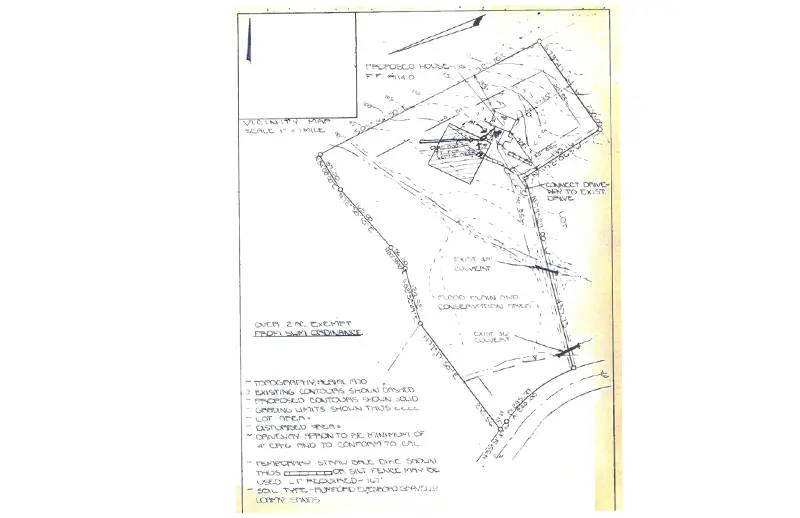

To guide the process, Cierra provided a clear drawing with instructions, helping our team understand the exact positioning of the septic and well systems.
Address Only – No Site Visit Required
Excellent 4.9/5 based on 947 reviews
Cierra B. “Excellent service and fair price at all.”

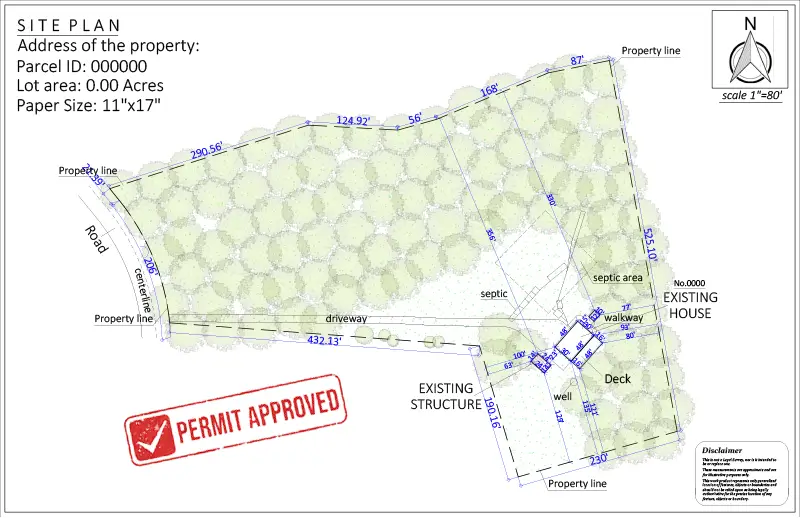

Using the provided drawing, our CAD team created a precise and easy-to-read site plan tailored for permit submission.
Although these plans are non-certified, they are commonly accepted by most townships, and since no site visit is required, we were able to deliver quickly and keep the process simple for the client.
We completed the plan ahead of schedule, in just 15 hours.
Cierra’s Premium Site Plan drawing included all necessary information like:
REVISIONS
Cierra requested two revisions, which we completed promptly at no additional cost.
These adjustments ensured everything was perfectly aligned with her expectations and submission needs.
This project shows how clear communication and a well-prepared reference can speed up the entire process.
Cierra received a detailed and accurate site plan ahead of time, making her permit application straightforward and stress-free.
The biggest advantage here was the combination of fast turnaround and precise utility placement, which allowed her to proceed with confidence.
