Case Study / Residential

How Hugh from Breinigsville, PA
Secured His Site Plan for a Shed

Hugh, a residential client from Breinigsville in Upper Saucon Township, Pennsylvania, needed a site plan to submit for a new shed permit.

His request was to add a proposed shed next to his existing house, and the city required a detailed site plan showing all existing structures and property features.

Order:

Hugh selected our Gold Package Site Plan, requesting files in PDF, JPG, and DWG formats.

To make things simple, Hugh didn’t provide any additional files—just a clear note that the shed should be added beside the house. This gave our team the information we needed to start drafting right away.

He wanted a 12-hour delivery.

OUR SOLUTION:

Our CAD team prepared a complete site plan that covered every detail needed for township review. The Gold Package features were included, along with the placement of the new shed.

By adding topographical details and ensuring precise measurements, the plan provided clear documentation for Hugh’s shed permit application.

With our streamlined drafting process, we completed the project in just 9 hours, faster than requested.

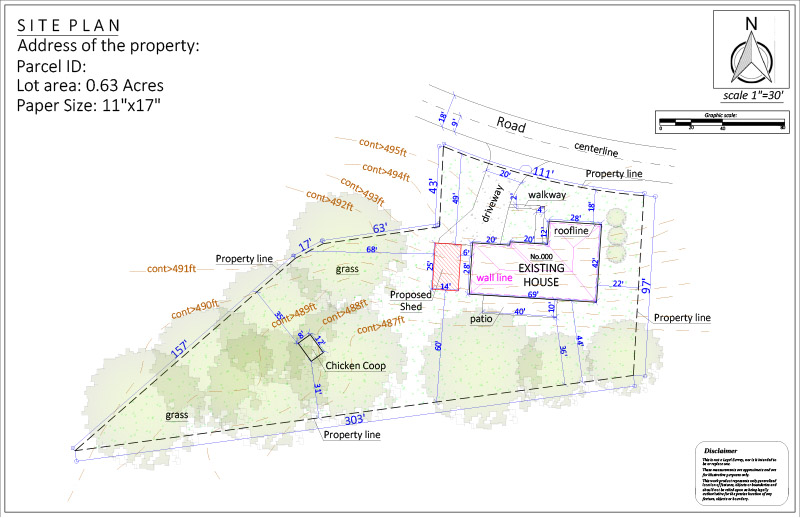

Hugh’s  Gold Site Plan drawing incuded all necessary information like:

  • Property Lines
  • Primary Structure
  • North Arrow
  • Parcel ID
  • Landscape
  • Lawn
  • Swimming Pool
  • Lot dimensions
  • Scale, Roofline
  • Fence, Trees
  • Sidewalks
  • Driveway
  • Paths, Shrubs
  • Parking Spaces
  • Measurements Between Major Features
  • Accessory Structures
  • Well and septic system
  • Additional new structures
  • Topographic Contour Lines
  • Vicinity Map

REVISIONS

Hugh did not request any revisions—everything was approved on the first draft.

SUMMARY

This case study shows how our team delivers fast and precise site plans, even when minimal input is provided by the client.

Hugh received his plan earlier than expected, complete with all the details needed for his shed permit.

He was pleased with the quick turnaround, accuracy, and the fact that the process required almost no effort on his part.

9h

DELIVERY TIME

PDF, JPG, DWG

FILE TIPE

11x17"

PAPER SIZE

0

REVISON
