Commercial Site Plan: Definition, Examples, Cost, How to Create

Before embarking on any commercial building project, preparing a feasibility-focused and environmentally compliant commercial site plan is a crucial first step.

To facilitate success, it’s essential to evaluate every component and consider all potential impacts on the surrounding landscape and environment.

To help you navigate this process and avoid costly mistakes, we’ve created this feasible guide to walk you through all aspects of a commercial site plan—what it should include to remain compliant, the architecture of the layout, who can design it, and the associated costs.

Key Takeaways:

• A commercial site plan is a crucial, detailed layout for any commercial project, ensuring regulatory compliance, environmental considerations, and accessibility.
• Due to its complexity, creating a commercial site plan typically requires professional expertise to include essential elements like building layout, parking allocation, utilities, and safety features, though cost-effective online services offer compliant alternatives.
• The cost of a commercial site plan ranges from $159 to $1,000, depending on the level of detail and professional involvement needed.

What is a Commercial Site Plan?

A commercial site plan is a detailed, scaled drawing that illustrates the intended use, development, layout, and arrangement of a commercial property.

It’s a type of site plan that focuses on the exterior details, showing how the commercial property will be divided and utilized. An initial land survey helps assess the site conditions and informs the layout (though a site plan and a survey serve different purposes and include distinct elements).

Local governments require this visual representation before any commercial construction or redevelopment project can begin. Once approved, the plan serves as a roadmap for professionals to construct the project according to all site specifications.

The commercial site plan, therefore, covers the following aspects:

• Building layout – To ensure all structures are correctly positioned
• Comprehensive zoning compliance – To meet local requirements
• Landscape design – Enhances aesthetics while contributing to sustainability
• Safety and accessibility –  Focuses on pedestrian safety, parking facilities, and ease of access.
• Cost and timeline estimation – Assists in budgeting and planning
• Vision communication – Conveys project objectives to stakeholders

By addressing these aspects, the commercial site plan serves as the groundwork for the broader commercial site development plan.

Commercial Site Plan Role in Commercial Site Development Plan?

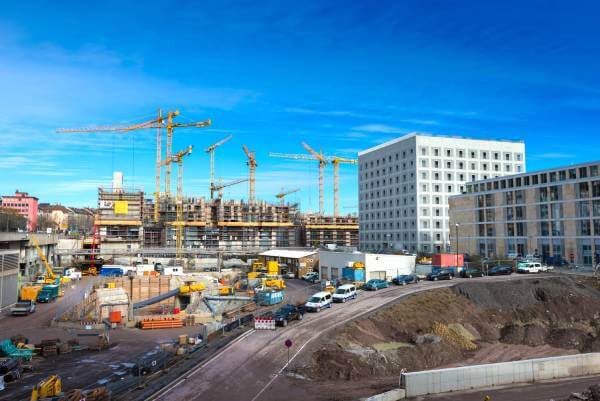

The commercial site plan plays a critical role in the commercial site development plan, serving as a foundational blueprint that guides the entire development process.

The site plan provides detailed infrastructure planning, bridging the initial concept and the practical steps needed to bring the commercial space to life. It is scalable to future development needs.

To fully understand the role of a commercial site plan, let’s explore the essential elements it should include.

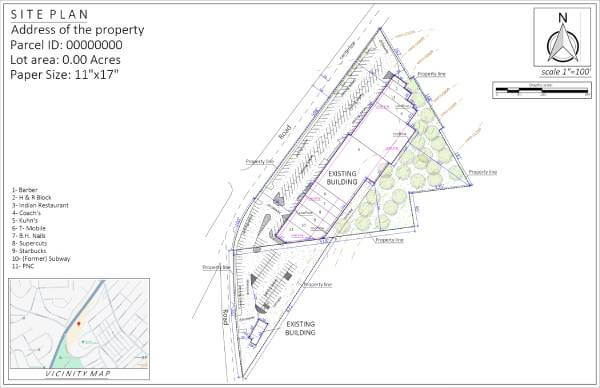

What Should Commercial Site Plans Include?

What commercial site plans should include varies from place to place, as building codes aren’t uniform for the entire state.

For example, according to Mobile County, AL, commercial site plans should cover four categories: floodplain management, subdivision compliance, traffic management and access, and general engineering design, including drainage management [1].

On the other hand, some counties require far fewer or significantly more detailed elements.

Nevertheless, most planning and building departments require the following types of information:

1. Property boundaries and legal information
2. Building location and structures
3. Parking layout and site access
4. Drainage and grading
5. Landscaping and open spaces
6. Zoning and compliance
7. Utility connection
8. Pedestrian paths
9. Lighting and signage
10. Safety features and waste management

Let’s look at each one in detail.

1. Property Boundaries and Legal Information

• Vicinity Map: A map showing surrounding properties and a directional arrow to help orient the site in its local context.
• Contours: Marked existing and proposed contours, labeled to show the current and planned topography.
• Legal Description: The official legal description of the property’s location.

2. Building Location and Structures

• As the plan outlines the building layout, it should position the location, dimensions, and materials of all buildings, both current and planned, such as the main building, storage units, and any auxiliary structures.

3. Parking Layout and Site Access

• Parking Spaces and Accessibility: The blueprint includes parking facilities to enhance accessibility. It provides a detailed layout of parking areas, including accessible spaces.
• Access Points: Note all adjoining streets and alleyways with integrated access points to and from the property. New access points should meet local codes for minimum and maximum widths, as specified.
• Sight Distances: Indicate sight distances at intersections and access points to ensure safe vehicle movement.

4. Drainage and Grading

• Water Flow and Drainage: The blueprint addresses drainage needs. It must assess and analyze the environmental impact by showing how water will flow across the property, especially in the parking lot, and where it will drain—whether to storm sewers, drainpipes, or a retention pond.
• Grading Plan: Include a grading layout that details methods to prevent sediment runoff, per local erosion control requirements.

5. Landscaping and Open Spaces

• Designate landscaped areas and the locations of trees, plants, and other greenery. Many departments require landscaping plans to support stormwater management. A well-planned landscape design further enhances the property’s aesthetics.
• Sustainable landscaping and effective drainage and waste management systems contribute to aesthetic appeal and environmental responsibility.

6. Zoning and Compliance

• Zoning Requirements and Setbacks: Ensure regulation adherence so the property complies with local regulations for a smooth approval process.
• Include property line setbacks and zoning information to further help local authorities enforce regulations. Also, include any necessary details to comply with local stormwater and sediment control regulations.

7. Utility Connections

• Show connections to essential utilities, including water, sewer, gas, and electricity, along with stormwater management infrastructure, if applicable. Utility connections are critical to ensuring that the site remains easy to manage and efficient.

8. Pedestrian Paths

• Walkways: Besides parking facilities, the blueprint includes safe, accessible pedestrian paths connecting parking areas to building entrances. The design strategically integrates access points and optimizes the layout for both foot and vehicle traffic, enhancing movement efficiency and meeting accessibility standards.
• Surface Materials: Note materials for parking and (pedestrian-friendly) walkways, like asphalt or permeable pavers, to ensure durability and safety.

9. Lighting and Signage

• Lighting: Detail the placement and specifications of exterior lighting. Strategic lighting placement throughout the site and lighting quality provide safe visibility and security, enhancing nighttime accessibility and safety, and supporting both current needs and the scalability of future expansions.
• Signage: Include any proposed signage for wayfinding or business branding, ensuring it aligns with zoning restrictions.

10. Safety Features and Waste Management

• Emergency Exits and Fire Safety: Mark emergency exits, fire hydrants, and sprinkler systems as required.
• Dumpster Location: Show proposed locations for dumpsters, especially for properties involving food service or large waste production.

Given the complexity of these details, it’s important to rely on professionals or detailed guidelines to create a permit-ready blueprint, so let’s look at who is qualified to take on this task and create a compliant site plan.

How to Create and Draw a Site Plan for a Commercial Building

A site plan for a commercial building can rarely be created and drawn by anyone without solid experience and knowledge of layout and technical drawing.

On the other hand, modern, intuitive software has made it more accessible for those with an eye for detail to learn how to draw a site plan.

This creates three main options for site plan design:

• DIY (for amateurs)
• Hiring a professional
• Using an online redraw service

In each case, the plan must strike a balance between compliance and flexibility, allowing for minor adjustments before it is ready to submit to local authorities for approval (developers have to submit site plans for review).

DIY With Commercial Site Plan Software or By Hand

While amateurs may attempt to create a preliminary layout using some of the best software available for drawing site plans, few have the expertise to meet the detailed regulatory requirements for commercial projects.

Moreover, DIY site plans for commercial buildings are rarely accepted without professional oversight, as they often lack the necessary compliance with zoning laws and other regulations.

Therefore, a better option is to explore other ways of obtaining a professionally drawn site plan for your property rather than attempting to create one yourself.

Hiring Professional

Hiring a professional, like an architect or civil engineer, is generally required for certified site plans.

Their qualifications allow them to create highly accurate, regulation-compliant commercial site plans. However, they are by far the most expensive option.

Using GetaSitePlan Online Service

Specialized services like GetaSitePlan can draw or redraw commercial site plans based on measurements and information provided by clients or gathered through satellite images.

These services employ qualified drafters who work under the supervision of licensed professionals to ensure accuracy and are ideal for non-certified site plans.

Moreover, GetaSitePlan offers a fast 24-hour turnaround for site plans for permits at a reasonable price.
The choice between these options will ultimately affect the final cost of the commercial site plan, which we will break down below.

What’s the Commercial Site Plan Cost?

The cost of a commercial site plan typically ranges from $159 to $1,000, depending on the type of plan and the level of detail required.

Budget constraints influence decision-making, so efficient resource allocation is essential at this stage to balance costs with the required level of detail.

DIY site plans are the cheapest but often lack the necessary detail and compliance for commercial applications. On the other hand, hiring professionals provides the highest level of accuracy and compliance but is costly, with prices between $750 and $1,000.

Luckily, there’s a GetASitePlan Premium Package. It’s a great alternative offering a commercial site plan suitable for permit applications at just $159—delivering excellent value for quality and functionality in 24 hours.

Now, let’s see what the commercial site plan should look like.

Commercial Site Plan Examples

Many people confuse residential site plans with commercial site plans.

To clarify, the examples below showcase what a commercial site plan looks like and highlight its key differences from residential site plans. These examples represent simple 2D plans, as rendered commercial site plans are rarely used.

As you can see from the commercial site plan examples, they are packed with different details and thus can be used for any kind of commercial projects  – from suburban shopping centers to eco-friendly complexes and rural industrial parks.

If you’re unfamiliar with the details typically included in a site plan sample, you can quickly learn how to read them by spending just a few minutes with the article.

Building Success with a Well-Structured Plan

A well-constructed commercial site plan is essential for project success, offering a strategic plan that optimizes layout, traffic flow, and resource use.

A commercial site plan sets up your project for scalable future development while ensuring compliance with local regulations and safe, accessible pedestrian areas.

Given the importance of these details, relying on professionals for the planning process ensures you have the expertise needed to navigate any complexities and set your project up for success.
